EBARA is recognized as one of the world’s most important manufacturers of industrial machinery and other similar products. With its roots in Japan since 1912, it established EBARA Pumps Europe more than 20 years ago with manufacturing facilities in Italy and Spain to service Europe and the MENA region. EBARA is leveraging the Japanese R&D and technology, and Europe’s manufacturing acumen, proximity to the region and affordability to bring quality, innovation and cutting edge solutions that blend to elevate the quality of modern society and life. It has as such established itself as a world leader in design and manufacture of centrifugal electric pumps. EBARA’s fields of application vary from industrial, commercial, building services, HVAC, wastewater and sewage.
Standardised centrifugal electric pumps built in stainless steel AISI 304 (3 SERIES) and AISI 316 (3L SERIES). APPLICATIONS • Water supply to civil, agricultural and industrial plants • Pressure boosting • Fire-fighting, heating and air conditioning systems • Pumping industrial liquids • Irrigation • Refrigeration towers • Swimming pools • Emptying • Washing plants TECHNICAL…

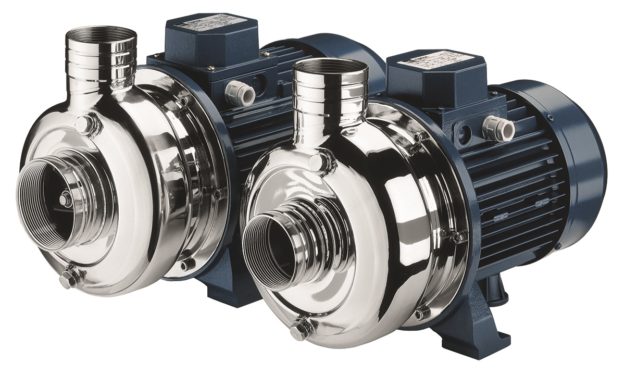

Open impeller centrifugal electric pumps in AISI 304 stainless steel. APPLICATIONS • Washing vegetables, meat, fish, molluscs • Industrial washing plants at cycle end • Washing and surface finishing of metal pieces, boxes, washing bottles, vases, glass containers, crates, baskets • Dishwashers, glasswashers, cupwashers for communities • Painting booths • Pumping, evacuation, transfer of liquids…
Single impeller centrifugal electric pumps with hydraulic parts in AISI 304 and AISI 316. APPLICATIONS • Domestic pressure boosting • Small-scale garden irrigation • Washing • Treating water • Cooling towers • Pumping clean water in general TECHNICAL DETAILS • Solid hydraulic structure • Small dimensions PUMP TECHNICAL DATA • Maximum working pressure: 8 bar…
Self-priming electric pumps in AISI 304 stainless steel. APPLICATIONS • Supply of drinking water • Domestic pressure boosting • Small-scale garden irrigation • Emptying reservoirs and swimming pools • Pumping clean water in general TECHNICAL DETAILS • Practical • Light and easy to transport PUMP TECHNICAL DATA • Maximum working pressure: 6 bar • Maximum…

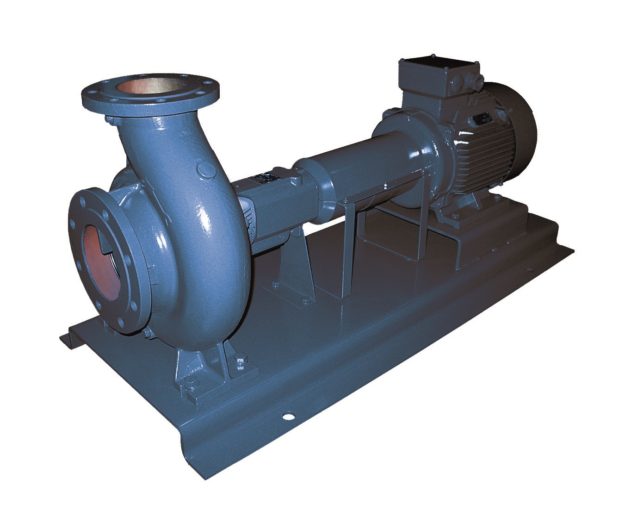

Normalised centrifugal pumps and electric pumps derived from EN 733 (ex DIN 24255). APPLICATIONS • Water supply in civil, agricultural and industrial installations • Pressurisation • Fire, heating and air conditioning systems • Industrial fluid handling • Purification plant, aqueducts and irrigation TECHNICAL FEATURES • Robust construction • Suited for use in fire equipment •…

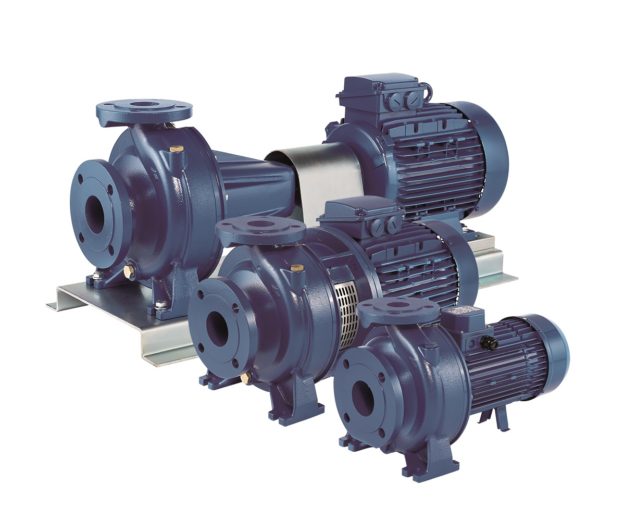

Cast iron monoblock (3D SERIES) and normalised centrifugal electropumps conforming to EN 733 (3DS-3DP SERIES). APPLICATIONS • Handling of water and clean, chemically non-aggressive liquids • Water supply • Pressurisation • Washing and industrial plants • Water circulation in climate control systems • Irrigation and agriculture TECHNICAL DETAILS • Highly robust construction • Stainless steel…
Cast iron single impeller centrifugal electric pump. APPLICATIONS • Pressure boosting domestic plants • Small-scale irrigation • Pumping non-aggressive liquids for civil and industrial use • Washing plants • Washing vehicles TECHNICAL DETAILS • Available with brass impeller (CMA 0.50 GO, CMA 0.75 GO, CMA 1.00 GO) • The CMR version is equipped with an…
Vertical multistage inline centrifugal electric pumps available in various versions: EVMS: Nominal flow rates 1, 3, 5, 10, 15, 20 m3/h EVM: Nominal flow rates 32, 45, 64 m3/h APPLICATIONS Industry e.g. water treatment, boiler feeding, wash and clean, chilling, machine tooling, pressure boosting, food & beverage,pharmaceutical industries, marine applications Building service e.g. pressure boosting, sprinkler…
AISI 304 vertical multistage centrifugal electric pumps. APPLICATIONS • Boosting of domestic and community hydraulic plants • Pumping liquids in places subject to flooding • Supplying fountains • Water games • Sprinkling irrigation of small vegetable patches and gardens TECHNICAL DETAILS • Reliable • Silent • Equipped with motor cooled by the flow of pumping…
In-line centrifugal electric pumps with AISI 304 stainless steel hydraulic equipment APPLICATIONS • Civil and industrial heating systems • Domestic hot water handling • Cooling and air conditioning systems • Low pressure fluid handling in general TECHNICAL FEATURES • Versatile • Silent running • Reliable PUMP TECHNICAL DATA • Maximum suction pressure: – 2 bar…
In-line single and twin centrifugal pumps with cast iron hydraulic equipment. APPLICATIONS • Fluid handling for circulation, heating and air conditioning system, both civil and industrial • Hot water and low pressure fluid handling in general • Cooling and air conditioning systems TECHNICAL FEATURES • Versatile • Silent running PUMP TECHNICAL DATA • IE3 high…
DEFINITION AND USE OF THE PRESSURE BOOSTER UNITS If the public water distribution system is inexistent or insufficient for correct functioning of the utilities, it is necessary to install a pressure boosting unit in order to guarantee an acceptable pressure and amount of water also in the most unfavourable points of use. The pressure boosting…
Multistage submersible centrifugal electric pumps, 5”, in AISI 304. APPLICATIONS • Handling clear water from wells, cisterns and first collection tanks • Pressurising domestic systems • Small irrigation systems • Washing vehicles • Increasing pressure in general TECHNICAL FEATURES • Fitted with double mechanical seals with interposing oil chamber • Supplied with 20 m power…

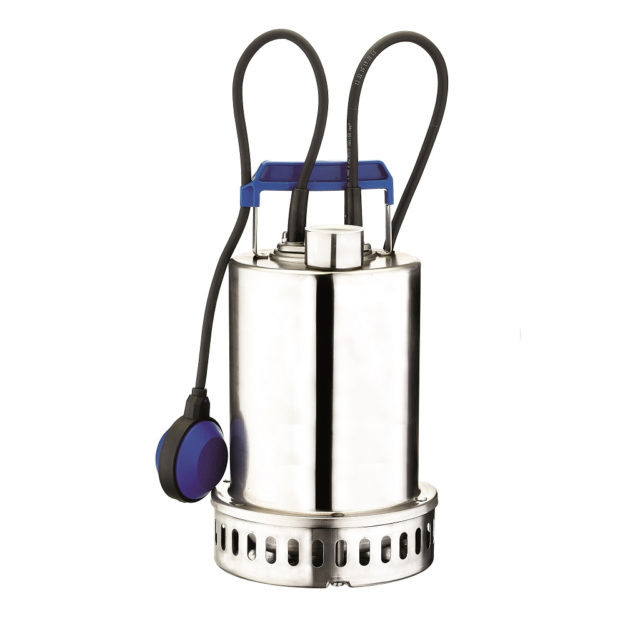

Submersible electric pumps in AISI 304 stainless steel throughout. APPLICATIONS • Handling infiltration water • Draining cellars, garages and submerged areas • Draining small and medium size construction sites TECHNICAL FEATURES • Versatile • Suited to fixed and mobile installations • Fitted with 10 m power cable, type H07 RN-F • Available with/without float switch…
Submersible electric pumps for clear water with hydraulic equipment in AISI 304 stainless steel. APPLICATIONS • Draining wells, garages, cellars or other flooded enclosed areas • Irrigation for gardens and vegetable gardens • Handling infiltration water or drainage of unloaded water TECHNICAL FEATURES • Mechanical seal as standard supply • Reliable, corrosion resistant • Highly…
Submersible electric pumps in AISI 304 stainless steel for foul waste water. APPLICATIONS • Evacuation of civil and industrial waste water • Drying wells and excavations • Draining underground areas • Handling fluids containing suspended solids / filaments • Draining infiltration water • Handling foul waste water (domestic services) • Draining cesspits TECHNICAL FEATURES •…
Submersible electric pumps for loaded water in AISI 304 stainless steel. APPLICATIONS • Handling water containing suspended solids / filaments • Draining infiltration water • Handling drainage water (domestic services) • Draining cesspits and draining into the sewers TECHNICAL FEATURES • Fitted with 5 m power cable, type H07 RN-F (on request 10 m cable…

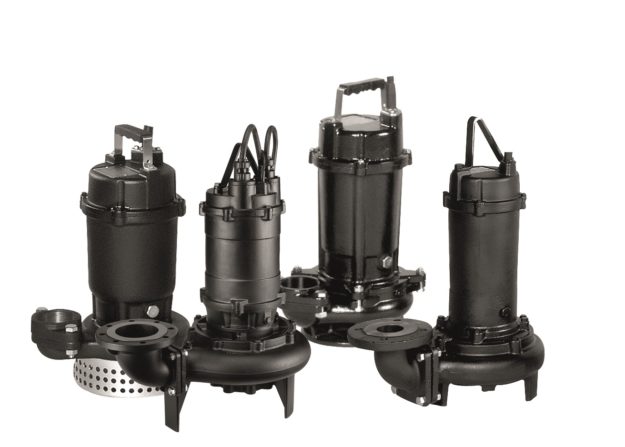

DL – DL W/C Submersible electric pumps for foul water (DL) with cutter (DL W/C) in cast iron. APPLICATIONS • Effluent collection tanks • Ideal for applications with effluent containing soft or fibrous solids • Lifting or clear or grey water with suspended particles • Purification systems • Lifting waste water for small and large…
