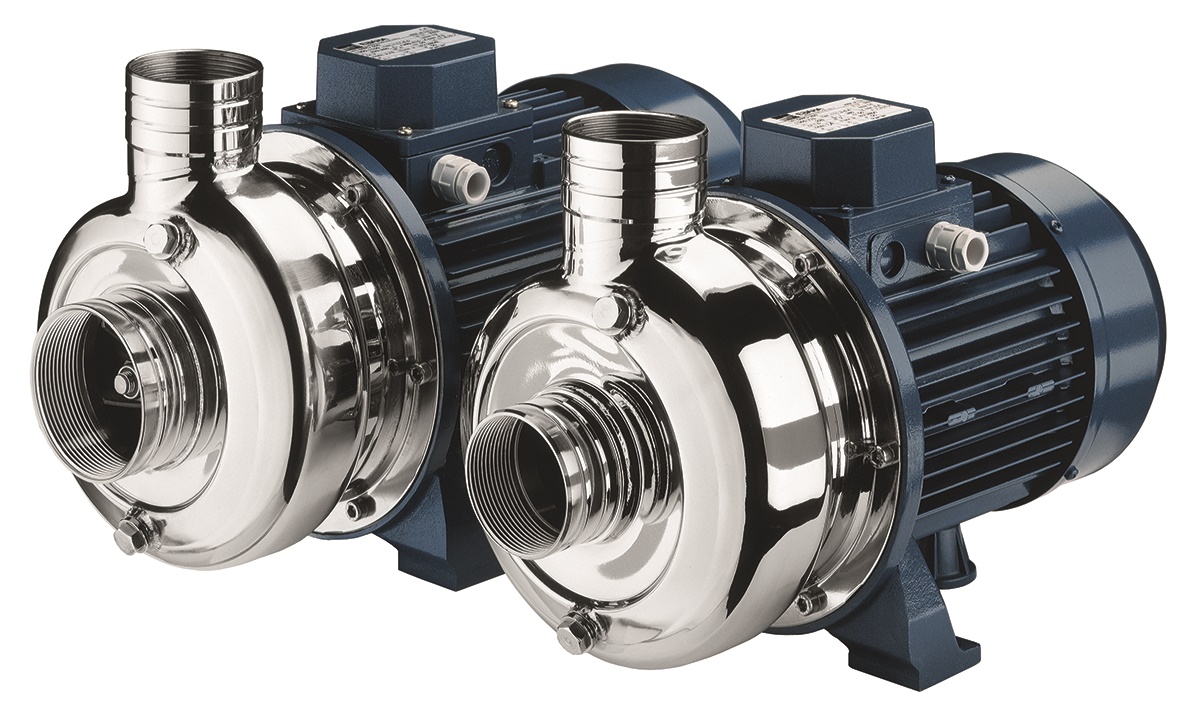

Open impeller centrifugal electric pumps in AISI 304 stainless steel.
APPLICATIONS
• Washing vegetables, meat, fish, molluscs
• Industrial washing plants at cycle end
• Washing and surface finishing of metal pieces, boxes, washing bottles, vases, glass containers, crates, baskets
• Dishwashers, glasswashers, cupwashers for communities
• Painting booths
• Pumping, evacuation, transfer of liquids
TECHNICAL DETAILS
• Sturdy structure
• Small dimensions
• Silent
PUMP TECHNICAL DATA
• Maximum working pressure: 8 bar
• Maximum temperature of the liquid:
-5°C ÷ +90°C
-5°C ÷ +110° for H-HS-HW-HSW versions
• Maximum solids size for passage: 19 mm
• G2½ suction connection for
MATERIALS
• Pump casing, casing cover, impeller and shaft (part in contact with the liquid) in AISI 304
• Bracket and motor frame in aluminium
• Mechanical seal in:
– Ceramic/Carbon/NBR (standard)
– special versions: see p. 27

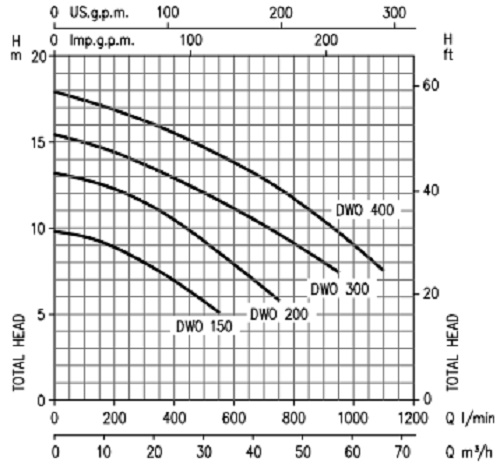

PERFORMANCE RANGE
Capacity: up to 66 m3/h
Head: up to 17.5m
