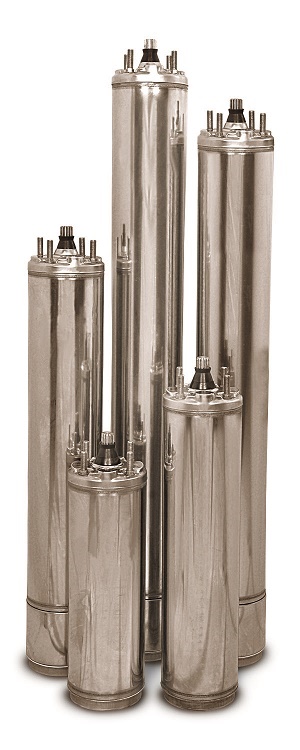

Designed for coupling with deep well submersible pumps according to NEMA standard. These motors are eco-friendly, wet type, water filled and rewindable. The outer shell is all made of stainless steel in type A. The stator windings are of water proof synthetic film, isolated copper winding wires. It features water lubricated thrust and journal bearings. Motor is pre-filled with clear, cold, pure, fresh, filtered propylene glycon (anti-freeze agent) mixed water.
Main applications:
Coupled with deep well submersible pumps, they’re used mainly for:
• Groundwater supply for:
o Agricultural irrigation.
o Gardens, golf courses.
o Sprinkler systems.
o Civil water supply.
• Dewatering for construction projects.
Technical features:
• Water cooled rewindable motor.
• Can be easily dismantled and repaired.
• Type A outer shell is all made of stainless steel (in stock for 6”)
• High operating efficiency.
• Extremely hardwearing and water lubricated bearings.
• Specially designed thrust bearing to withstand high axial loads.
• AISI 630 (17.4 PH) motor shaft extension for longer life.
• Class of Insulation: Y
• Degree of Protection: IP68
• Shaft type: NEMA Standard

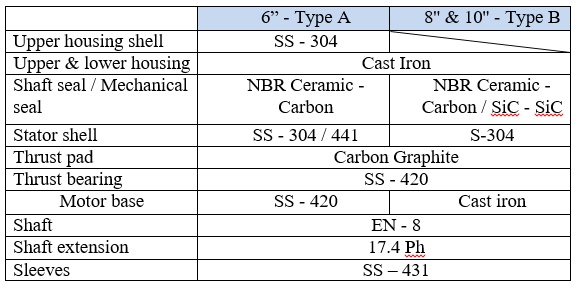

Materials of Construction:

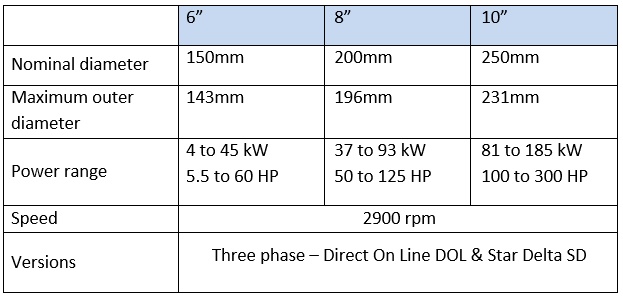

Range:
