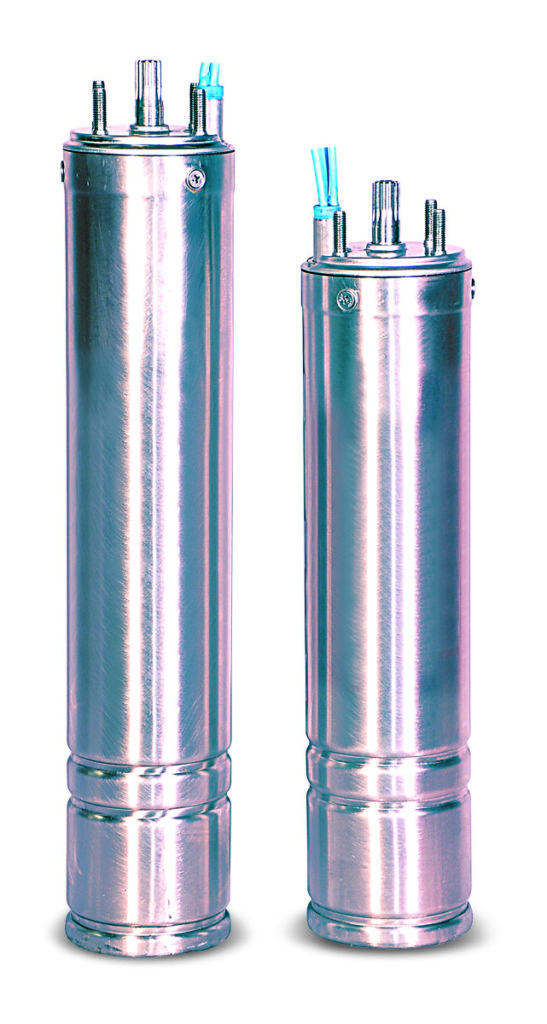

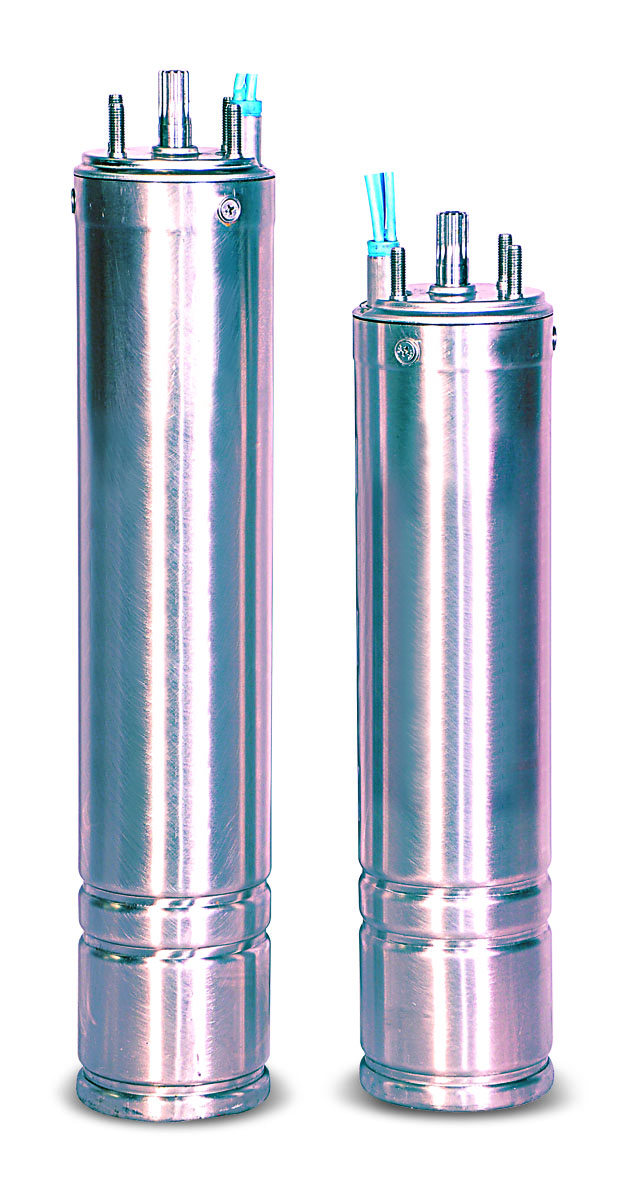

Submersible motors designed for coupling with deep well submersible pumps according to NEMA standard. All the components that are in contact with water are made of AISI 304 stainless steel and the motor is pre-filled with edible grade oil, which acts as coolant media, as well as lubricant.
Main Applications:
Coupled with deep well submersible pumps, they’re used mainly for:
• Groundwater supply for:
o Agricultural irrigation.
o Gardens, golf courses.
o Sprinkler systems.
o Civil water supply.
• Dewatering for construction projects.
Technical Features:
• High operating efficiency and lesser power consumption.
• Extremely hardwearing ball & angular contact bearings.
• Corrosive resistance stainless steel body.
• Filled with non-toxic oil.
• Can be easily dismantled and repaired.

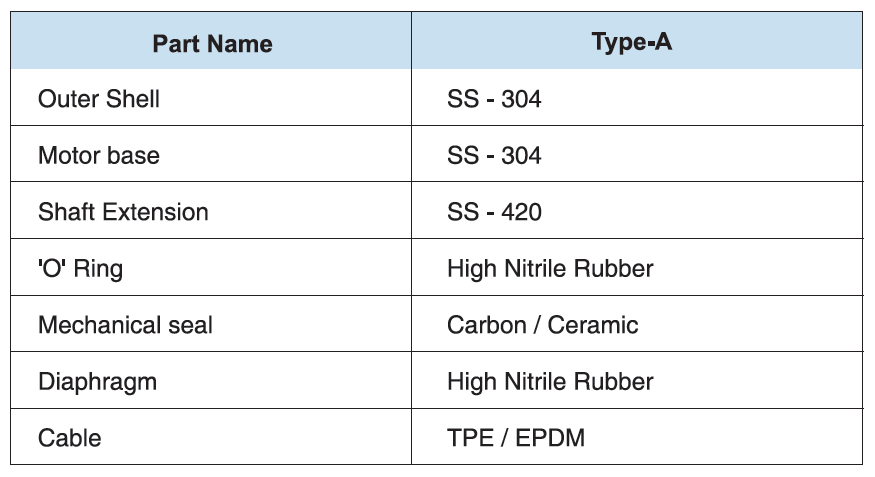

Materials of construction:

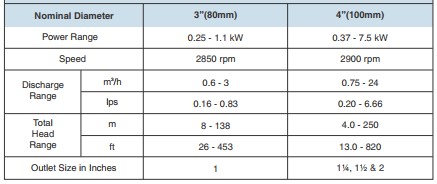

Range:
Click here for CRI’s pump selector tool
