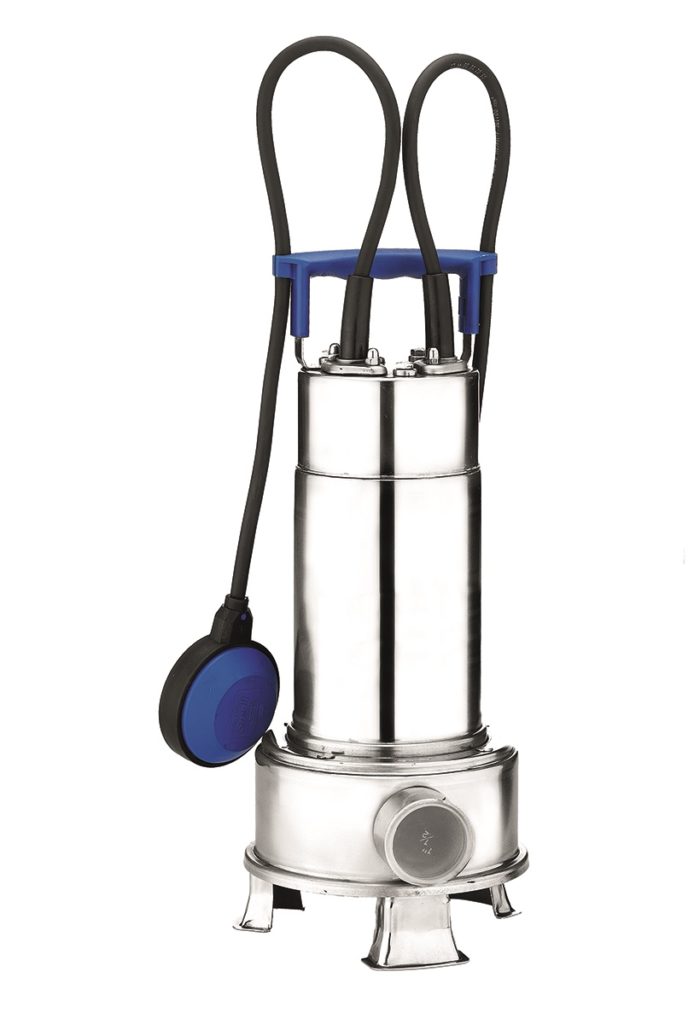

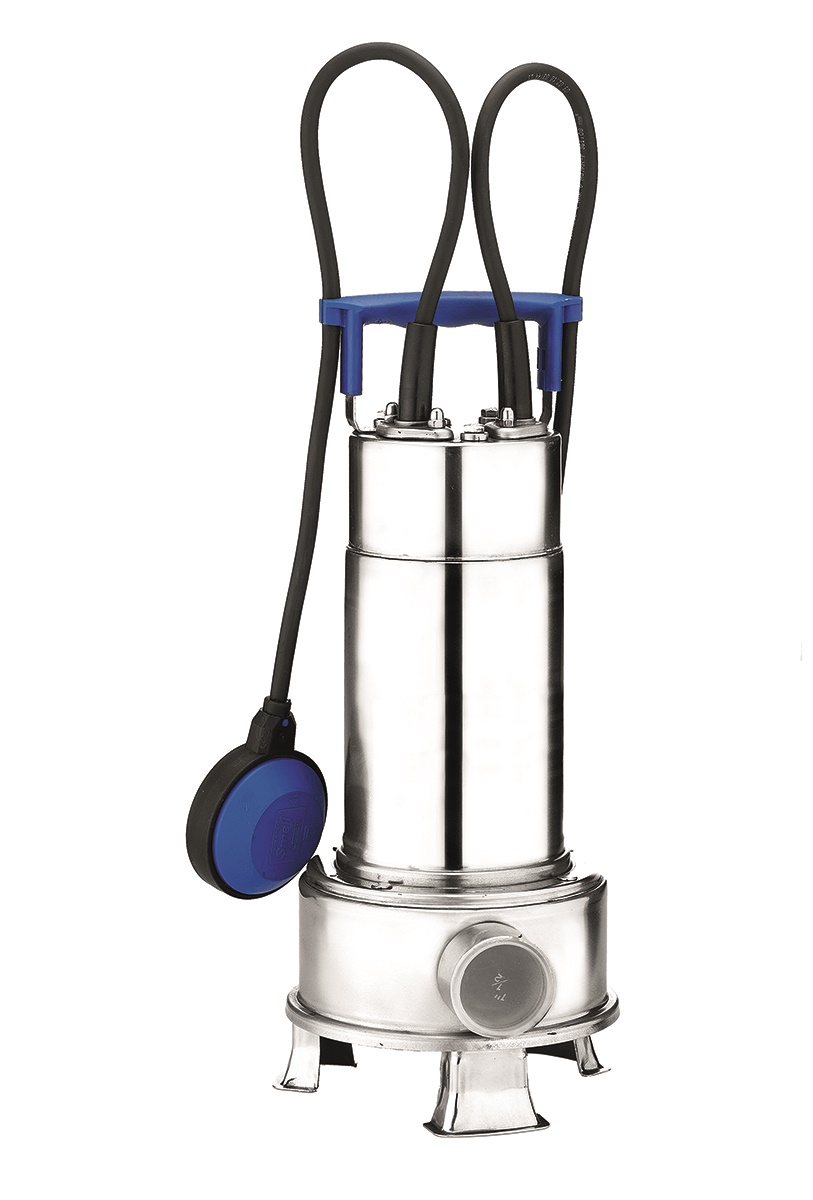

Submersible electric pumps for loaded water in AISI 304 stainless steel.
APPLICATIONS
• Handling water containing suspended solids / filaments
• Draining infiltration water
• Handling drainage water (domestic services)
• Draining cesspits and draining into the sewers
TECHNICAL FEATURES
• Fitted with 5 m power cable, type H07 RN-F (on request 10 m cable H07 RN-F)
• Available with/without float switch
TECHNICAL DATA
• Maximum submersion: 7 m
• Maximum fluid temperature: 50°C
• Maximum solid dimensions: 35 mm
• 2 pole self-ventilating asynchronous motors
• Insulation class F
• Protection rating IPX8
• Single phase voltage 230V ±10% 50Hz three-phase voltage 400V ±10%, 50Hz
• Permanently active condenser and integrated automatic re-arming thermal cutout for the single phase motor
• Protection must be supplied by the user for the three-phase version
• Delivery connection: G1½
MATERIALS
• Pump body, impeller, motor cover, gasket disk and motor casing in AISI 304 stainless steel
• Shaft made of AISI 303 stainless steel (part in contact with liquid)
• Double mechanical seal with oil chamber:
– upper seal in Carbon/Ceramic/NBR (motor side)
– lower seal in SiC/SiC/NBR (pump side)

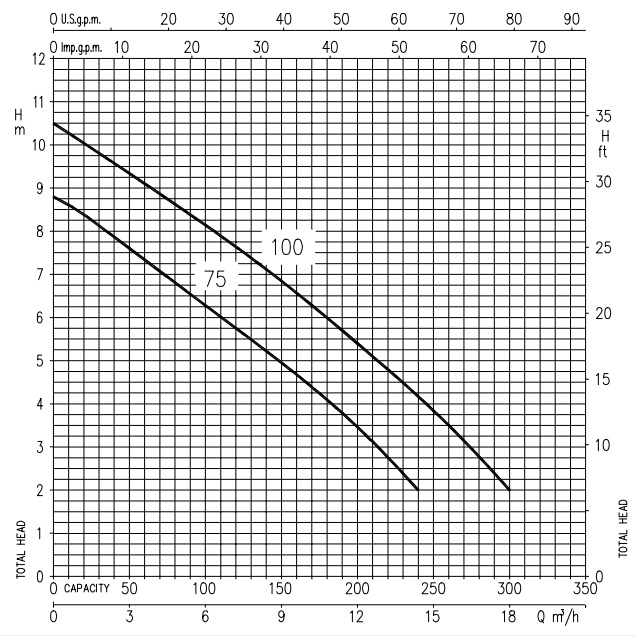

PERFORMANCE CURVES
Capacity: up to 18 m3/h
Head: up to 9.5m
