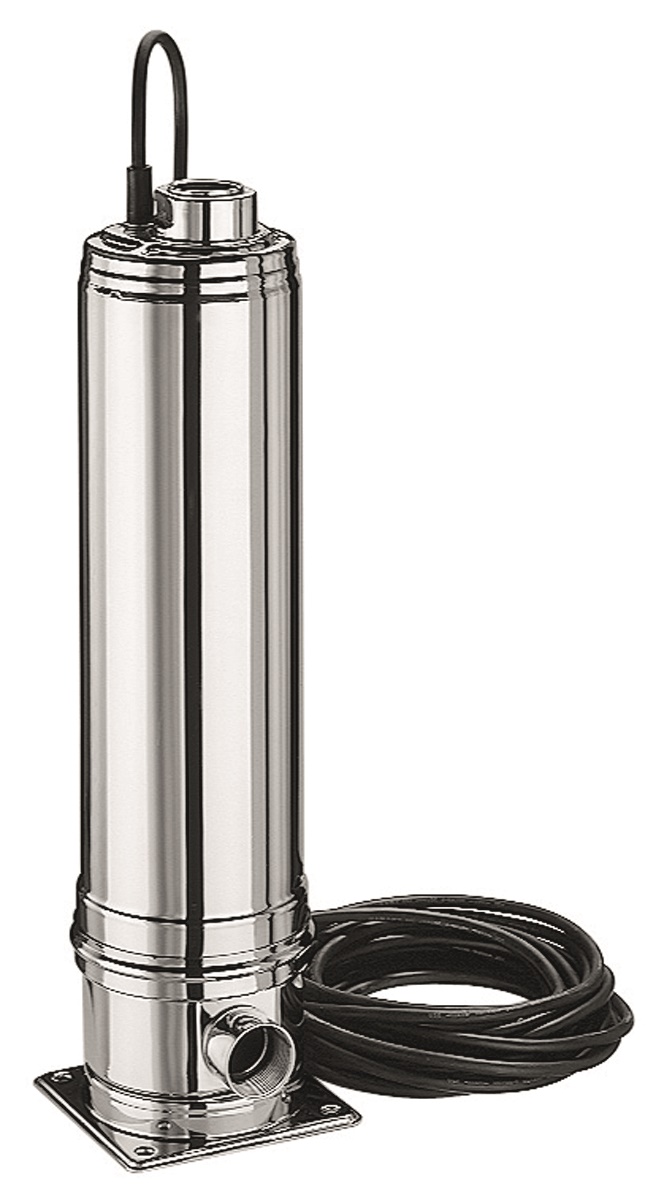

AISI 304 vertical multistage centrifugal electric pumps.
APPLICATIONS
• Boosting of domestic and community hydraulic plants
• Pumping liquids in places subject to flooding
• Supplying fountains
• Water games
• Sprinkling irrigation of small vegetable patches and gardens
TECHNICAL DETAILS
• Reliable
• Silent
• Equipped with motor cooled by the flow of pumping water
• Twin mechanical seal with interposed oil chamber containing the lubrication liquid that ensures long duration
• Equipped with 5 m of H07 RN-F power supply cable
• Also available in the in-line version (only for single phase version)
PUMP TECHNICAL DATA
• Maximum working pressure: 10 bar
• Maximum temperature of the liquid: 40°C
• Maximum suction depth: 6 m
• G1¼ suction and discharge connection
• MEI > 0.4
MATERIALS
• Pump casing, seal housing disc, external casing and motor cover in AISI 304
• Impeller and diffuser in PPE+PS reinforced with fibreglass
• Shaft in AISI 416
• Mechanical seal in Carbon/Ceramic/NBR

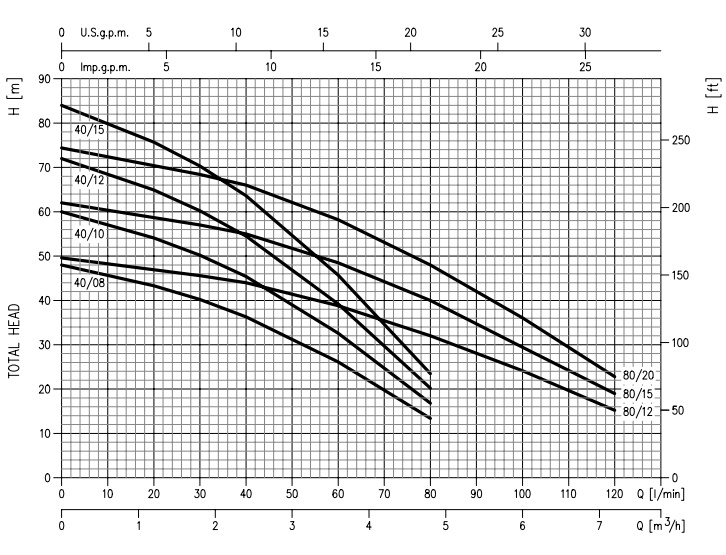

PERFORMANCE CURVES
Capacity: up to 7 m3/h
Head: up to 75.7m
