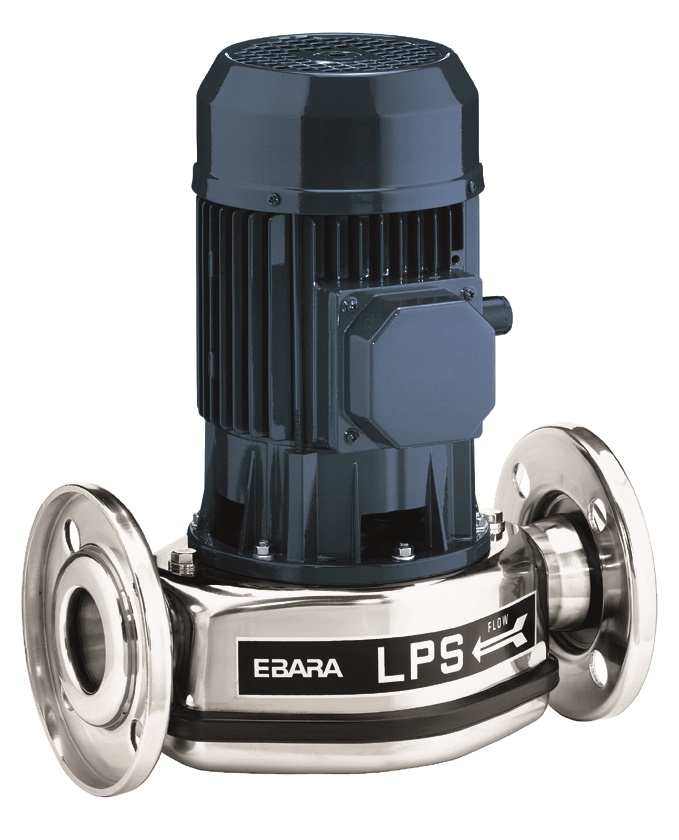

In-line centrifugal electric pumps with AISI 304 stainless steel hydraulic equipment
APPLICATIONS
• Civil and industrial heating systems
• Domestic hot water handling
• Cooling and air conditioning systems
• Low pressure fluid handling in general
TECHNICAL FEATURES
• Versatile
• Silent running
• Reliable
PUMP TECHNICAL DATA
• Maximum suction pressure:
– 2 bar for all single-phase models and LPS 25 three phase models,
– 4 bar for LPS 32-40-50 three phase models
• Fluid temperature: -10°C – +100°C
• Flanges: DN 25 to DN 50
• MEI > 0.4 except for LPS 32/40, LPS 40/40, LPS 40/75, LPS 50/40, LPS 50/75, LPS 50/150
MATERIALS
• Pump body, impeller and gasket disk in AISI 304 stainless steel
• Shaft made of AISI 303 steel (part in contact with liquid)
• Motor mount and casing in aluminium
• Mechanical seal made of Ceramic/Carbon/NBR
• Elastomers in NBR

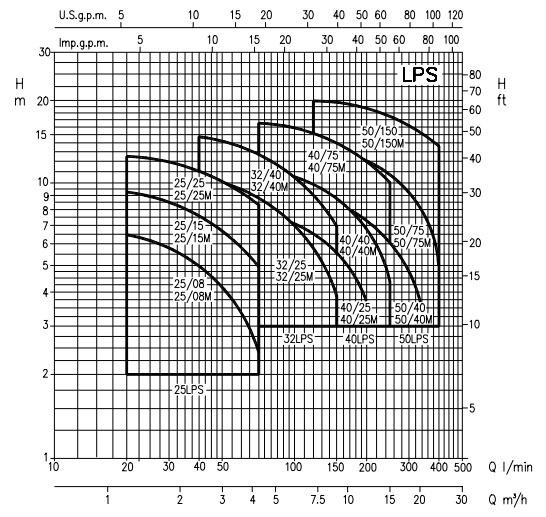

PERFORMANCE RANGE
Capacity: up to 24 m3/h
Head: up to 20m
