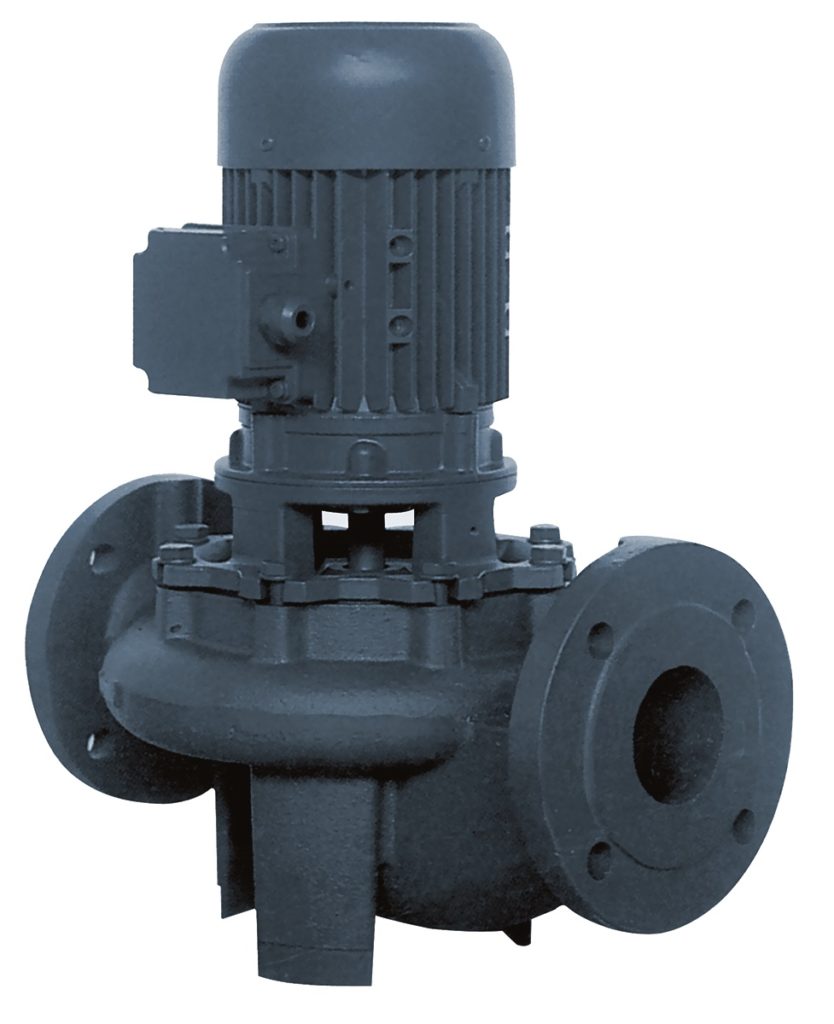

In-line single and twin centrifugal pumps with cast iron hydraulic equipment.
APPLICATIONS
• Fluid handling for circulation, heating and air conditioning system, both civil and industrial
• Hot water and low pressure fluid handling in general
• Cooling and air conditioning systems
TECHNICAL FEATURES
• Versatile
• Silent running
PUMP TECHNICAL DATA
• IE3 high energy-efficiency motors starting from 0.75kW
• Maximum operating pressure: 10 bar
• Maximum fluid temperature: -10°C to +110°C
• Maximum ambient temperature: +40°C (check with us for higher values)
• Maximum fluid viscosity: 38 cSt
• Flanges: PN10 for LPC 32-100 and LPC 40-100, UNI2223-29 PN16 for the rest of the range
• MEI > 0.4
MATERIALS
• Pump body, gasket disk and motor mount in cast iron
• Impeller made of cast iron
• Shaft made of AISI 420 steel
• Mechanical seal made of SiC/Carbon/EPDM

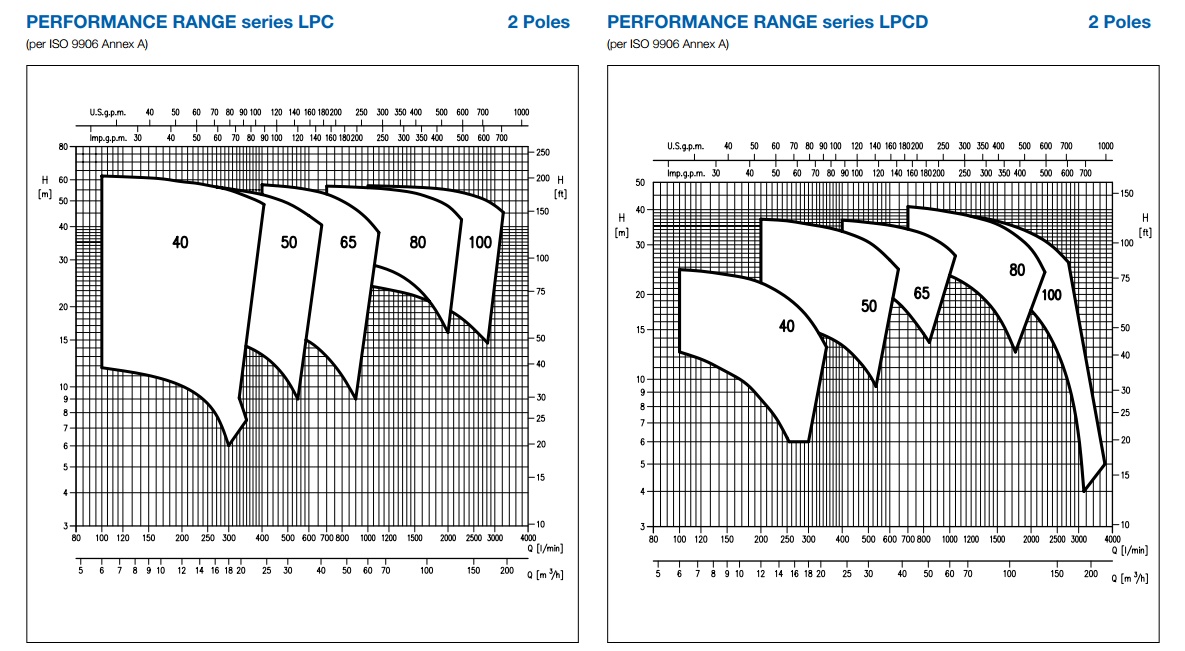

PERFORMANCE RANGE
Capacity: up to 300 m3/h
Head: up to 68m
