Lobe pumps:

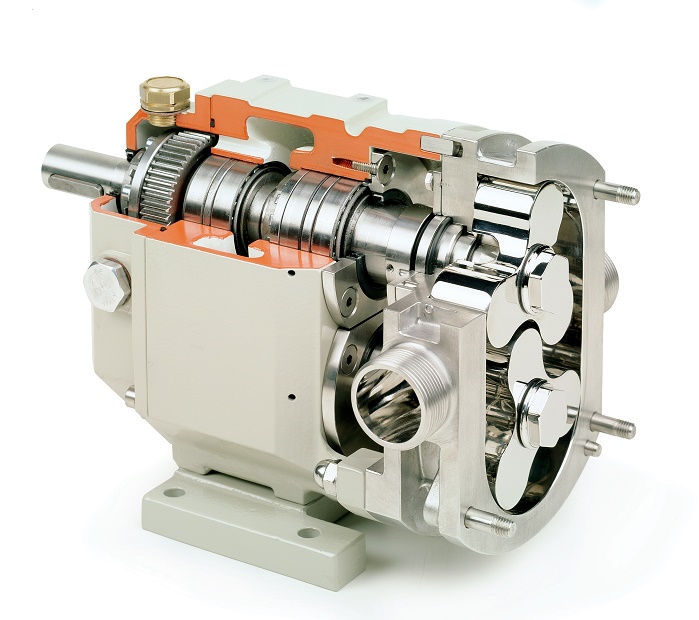

Lobe pumps in stainless steel AISI 316L. Used in food and pharmaceutical industries for delicate fluid transfer. Assembled on a cast iron gear box which has a protective
coating in epoxy paint finish. The chamber separating the rotor case and gear box enables the fitting of balanced compact reversible mechanical seals, avoiding the contamination between the pumped fluid and the gearbox lubricant.
Available in the following versions:
- Aseptic: for sterilized food and pharmaceutical packaging
- Enlarged suction inlet: for highly viscous products such as semi-solid pastes or mixtures
- Heated jacket: for keeping pumped fluid at constant temperature like melted fats, butter, chocolate, glucose
Main applications:
- Pharmaceutical
- Chemicals
- Beverages
- Cosmetics
- Food
- Confectionery
- Dairy
Material of construction:
- Shaft: AISI 316 or duplex sheet stainless steel.
- Rotor: high quality AISI 316L extruded shaped bar, or in special stainless steel anti-seizure alloy (Acteon).
- Pump body: AISI 316L stainless steel.
- All other pumps are made from the lost wax casting method.

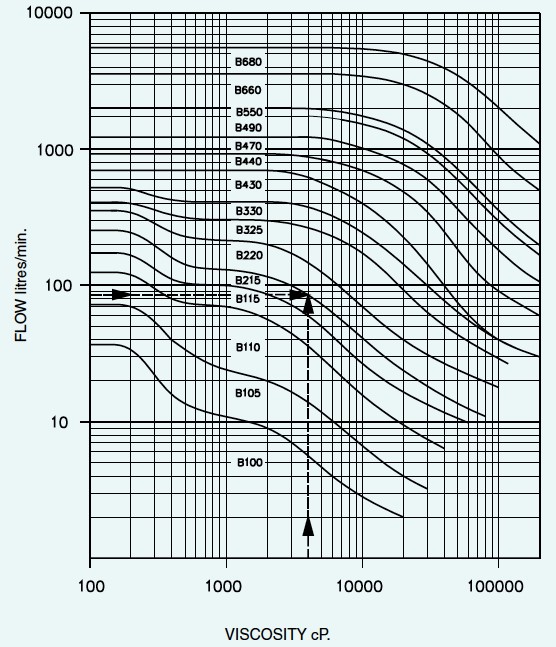

Performance Range:
