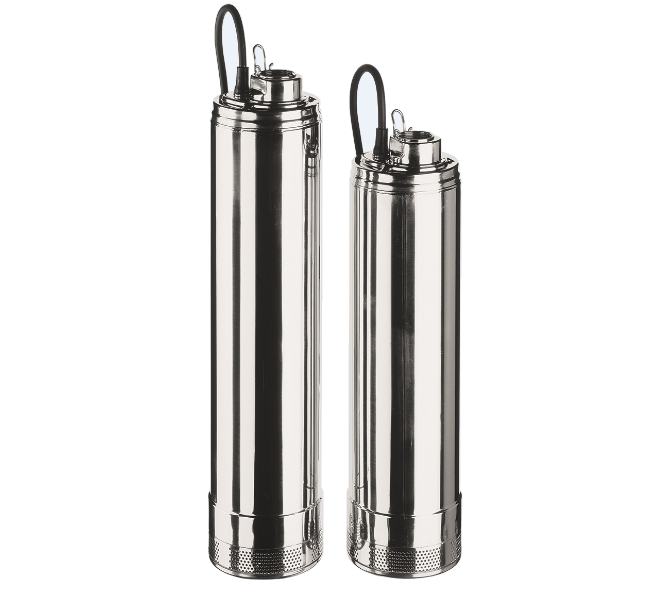

Multistage submersible centrifugal electric pumps, 5”, in AISI 304.
APPLICATIONS
• Handling clear water from wells, cisterns and first collection tanks
• Pressurising domestic systems
• Small irrigation systems
• Washing vehicles
• Increasing pressure in general
TECHNICAL FEATURES
• Fitted with double mechanical seals with interposing oil chamber
• Supplied with 20 m power cord, type H07RN-F (5 m for IDROGO 40/06 M)
• Single phase version with float available on request (version “A”)
• Available in the three phase 230V ±10% 50Hz version
• Installation: horizontal or vertical
PUMP TECHNICAL DATA
• Maximum operating pressure: 10 bar
• Maximum fluid temperature: 40°C
• Maximum immersion: 2 m (with 5 m cable)
10 m (version “A” with 20 m cable)
17 m (with 20 m cable)
• Maximum solid dimensions: 2.5 mm
• Delivery connection G1¼
MATERIALS
• External casing, motor cover, seal disk, filter and closing ring in AISI 304
• Impeller, diffuser and spacer in PPE + PS reinforced with fibreglass
• Shaft made of AISI 431 steel
• Upper mechanical seal (motor side) in Carbon/Ceramic/NBR and lower seal (pump side) in SiC/Carbon/NBR

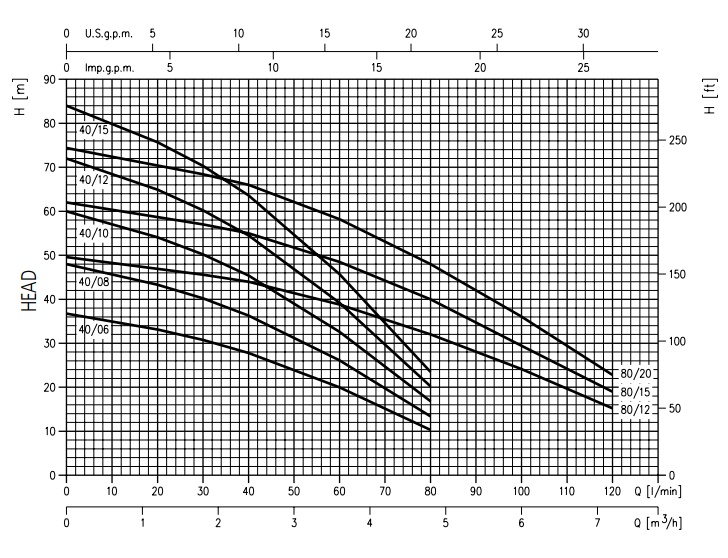

PERFORMANCE CURVES
Capacity: up to 7.2 m3/h
Head: up to 75.7m
