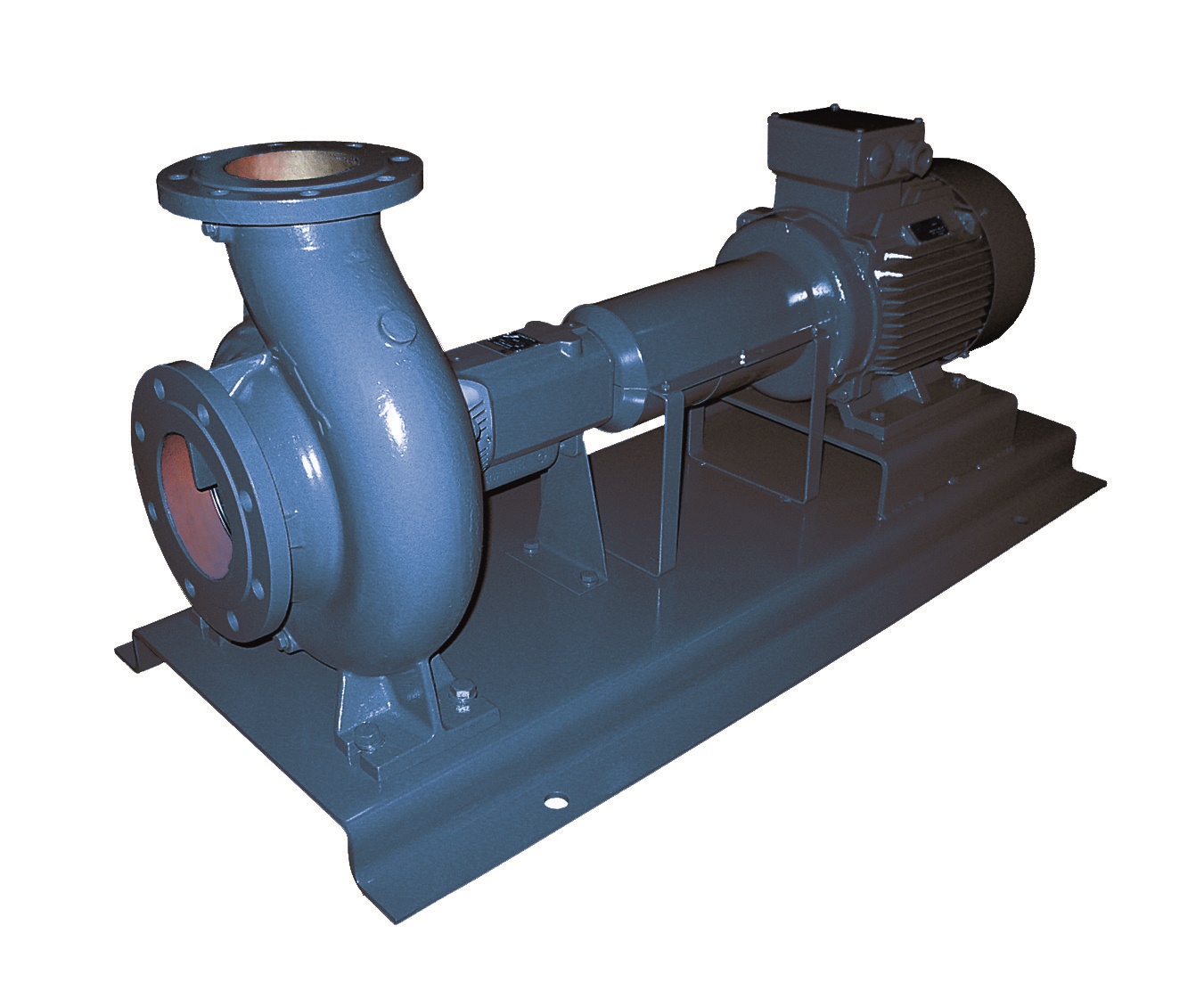

Normalised centrifugal pumps and electric pumps derived from EN 733 (ex DIN 24255).
APPLICATIONS
• Water supply in civil, agricultural and industrial installations
• Pressurisation
• Fire, heating and air conditioning systems
• Industrial fluid handling
• Purification plant, aqueducts and irrigation
TECHNICAL FEATURES
• Robust construction
• Suited for use in fire equipment
• Suited for use in complex industrial machinery
PUMP TECHNICAL DATA
• Maximum operating pressure: 14.7 bar
• Fluid temperature: -20°C ÷ 120°C
• Suction and delivery: flanged DIN 2532 (standard)
• MEI > 0.4
MATERIALS
• Cast (or bronze) impeller
• Pump body made of cast iron
• Shaft made of AISI 420 stainless steel
• Mechanical seal made of SiC/Carbon/EPDM

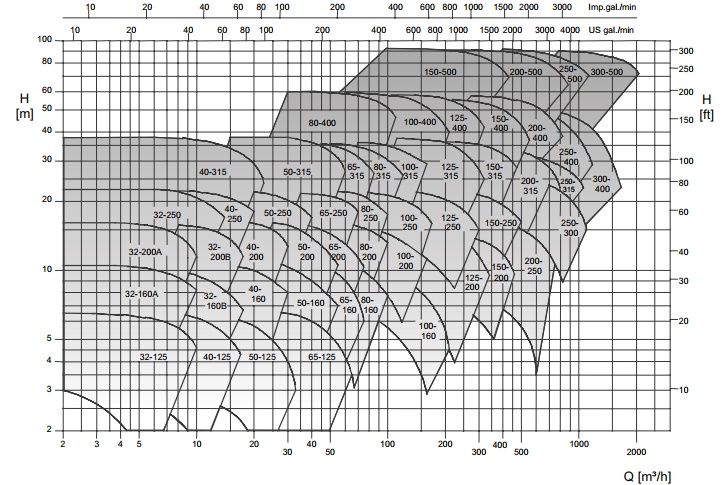

PERFORMANCE CURVES
Capacity: up to 2000 m3/h
Head: Head: up to 146m
