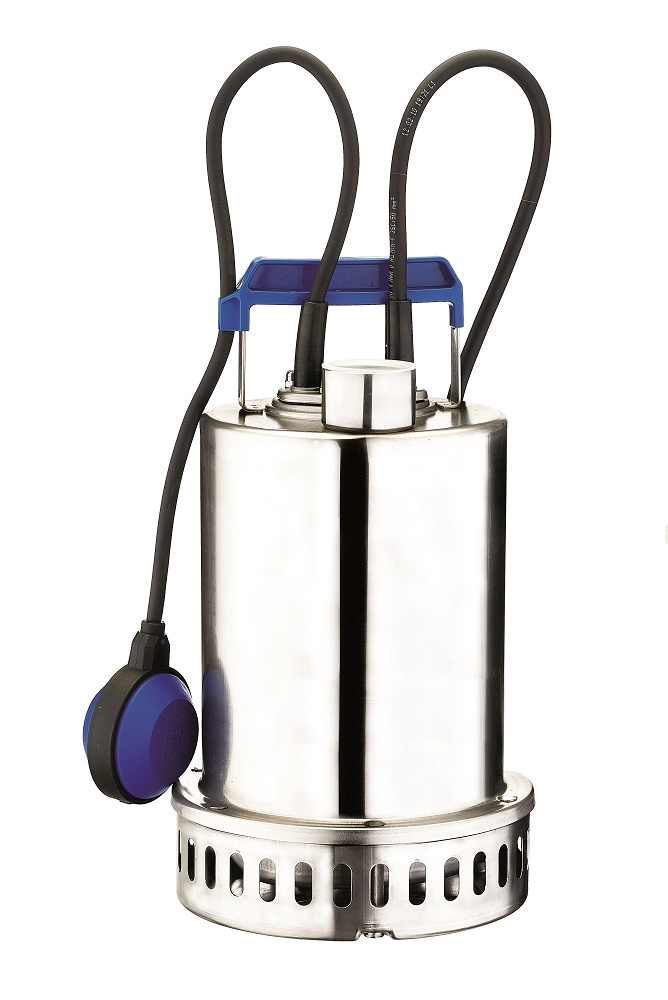

Submersible electric pumps in AISI 304 stainless steel throughout.
APPLICATIONS
• Handling infiltration water
• Draining cellars, garages and submerged areas
• Draining small and medium size construction sites
TECHNICAL FEATURES
• Versatile
• Suited to fixed and mobile installations
• Fitted with 10 m power cable, type H07 RN-F
• Available with/without float switch
TECHNICAL DATA
• Maximum submersion: 7 m
• Maximum fluid temperature: 35°C
• Maximum solid dimensions: 10 mm
• 2 pole self-ventilating asynchronous motors
• Insulation class F
• Protection rating IP68
• Single phase voltage 230V ±10% 50Hz three-phase voltage 400V ±10%, 50Hz
• Permanently active condenser and integrated automatic re-arming thermal cutout for the single phase motor
• Protection must be supplied by the user for the three-phase version
• Delivery connection G1½
MATERIALS
• Pump body, impeller, suction grille, motor cover, gasket disk and motor casing in AISI 304 stainless steel
• Shaft made of AISI 303 stainless steel (part in contact with liquid)
• Double mechanical seal with oil chamber:
– upper seal in Carbon/Ceramic/NBR (motor side)
– lower seal in SiC/SiC/NBR (pump side)

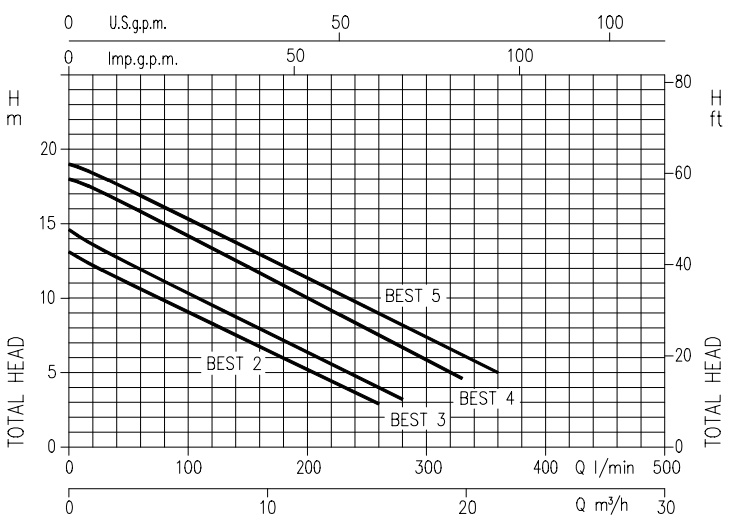

PERFORMANCE CURVES
Capacity: up to 21.6 m3/h
Head: up to 18.4m
