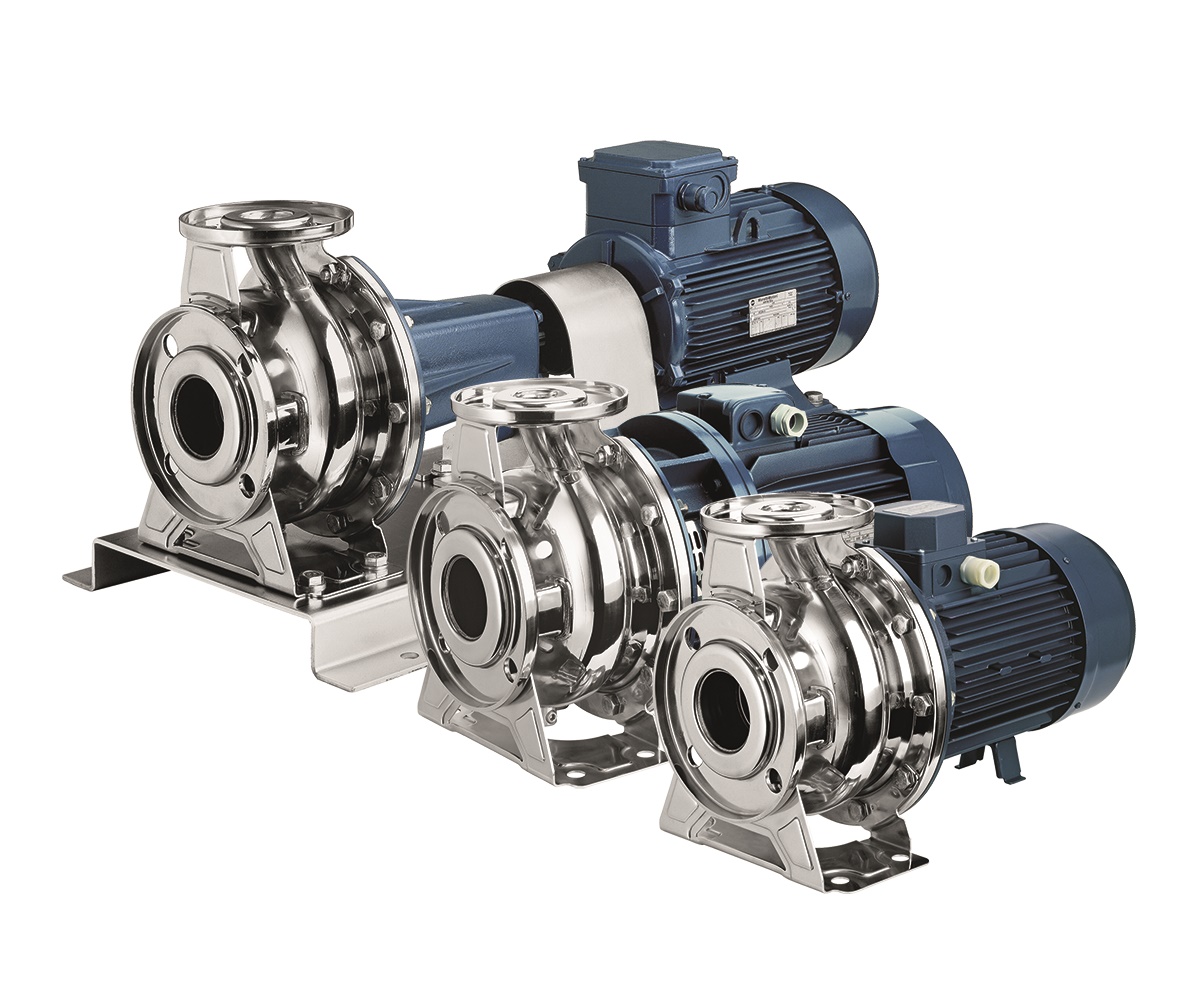

Standardised centrifugal electric pumps built in stainless steel AISI 304 (3 SERIES) and AISI 316 (3L SERIES).
APPLICATIONS
• Water supply to civil, agricultural and industrial plants
• Pressure boosting
• Fire-fighting, heating and air conditioning systems
• Pumping industrial liquids
• Irrigation
• Refrigeration towers
• Swimming pools
• Emptying
• Washing plants
TECHNICAL DETAILS
• Highly resistant structure
• Hydroforming process EBARA patent
PUMP TECHNICAL DATA
• Maximum working pressure: 10 bar
• Temperature of the liquid:
-10°C ÷ +90°C
-10°C ÷ +110°C (L-H-HS-HW-HSW versions)
-20°C ÷ +120°C (E-ES versions)
• MEI > 0.4
For further information please see our Data Book on the web site
www.ebaraeurope.com
MATERIALS
• Pump casing and casing cover in:
– AISI 304 for 3 SERIES 32-125/160/200
40-125/160/200
50-125/160/200
65-125/160/200
– AISI 316L for 3L SERIES 32-125/160/200
40-125/160/200
50-125/160/200
65-125/160/200
– AISI 316 microcasted for 3L SERIES 65-250
80-160/200/250
• Impeller in:
– AISI 304 for 3 SERIES 32-125/160/200
40-125/160/200
50-125/160/200
– AISI 316L for 3L SERIES 32-125/160/200
40-125/160/200
50-125/160/200
– AISI 316 microcasted for 3 SERIES 65-125/160/200
3L SERIES 65-125/160/200
65-250
80-160/200/250

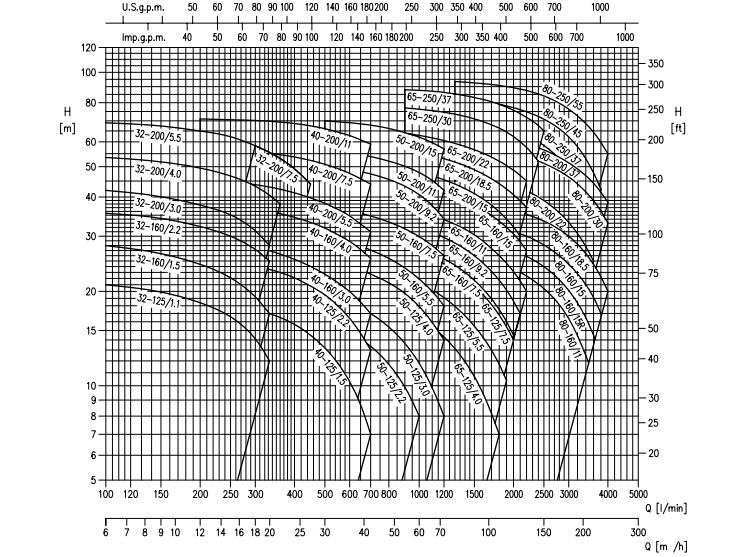

PERFORMANCE RANGE
Capacity: up to 240 m3/h
Head: up to 93.5m
